Ring Codes

Codes – Ring Codes

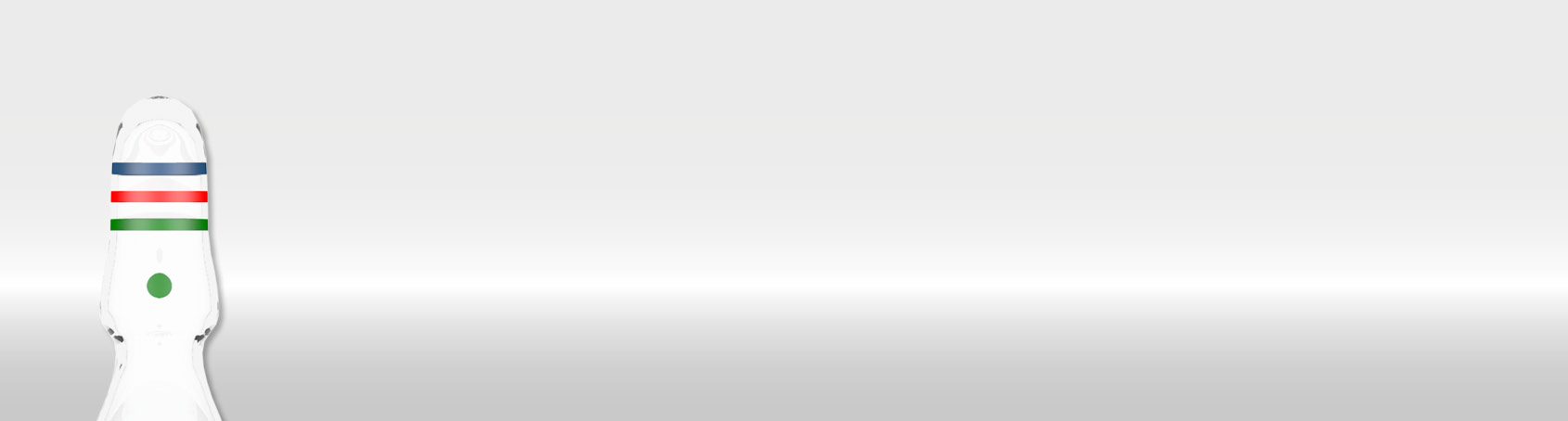

In contrast to barcodes and plain writing, the markings on spikes of ampoules are not standardised in a machine-readable way. Nevertheless, as with all other medicinal products, reliable recognition is necessary. The necessary characteristics of the ring codes are specified by scanware.

Recommended system for ring code inspection

The PATERA packaging control system controls parenterals such as ampoules in colour using artificial intelligence-based vision technology. The user interface is very easy to use and adaptable to the operator’s field of application, the software optimised for the inspection of ring codes. The built-in hardware offers outstanding illumination control, which is stored format-related and thus reproducible.


Highlights of the inspection PATERA Parenteralia

  • Fast product changeover with maximum inspection reliability, as label and ampoule are inspected in one step, even with mixed blisters, e.g. solid vial and solvent ampoule
  • The user interface is easy to use and customisable to the operator. This includes Alert View – central placement of system messages – as well as gesture control.
  • True colour recognition with up to 16 million colours and 2,100 images per minute can reliably inspect even the most demanding product-tray combinations, both in mixed blisters and individually


Inspection criteria

  • Number of colour rings
  • Ring colours
  • Sequence of rings
  • Ring widths
  • Ring spacing
  • Interruptions and length of the entire colour ring code
Contact us.

With pleasure we arrange an appointment with you for a personal discussion.
