Case Inspection

CAPA Case (CI)

To ensure the counterfeit protection of pharmaceutical products, the folding boxes packed in shipping boxes are inspected and the data processed as part of Track & Trace.

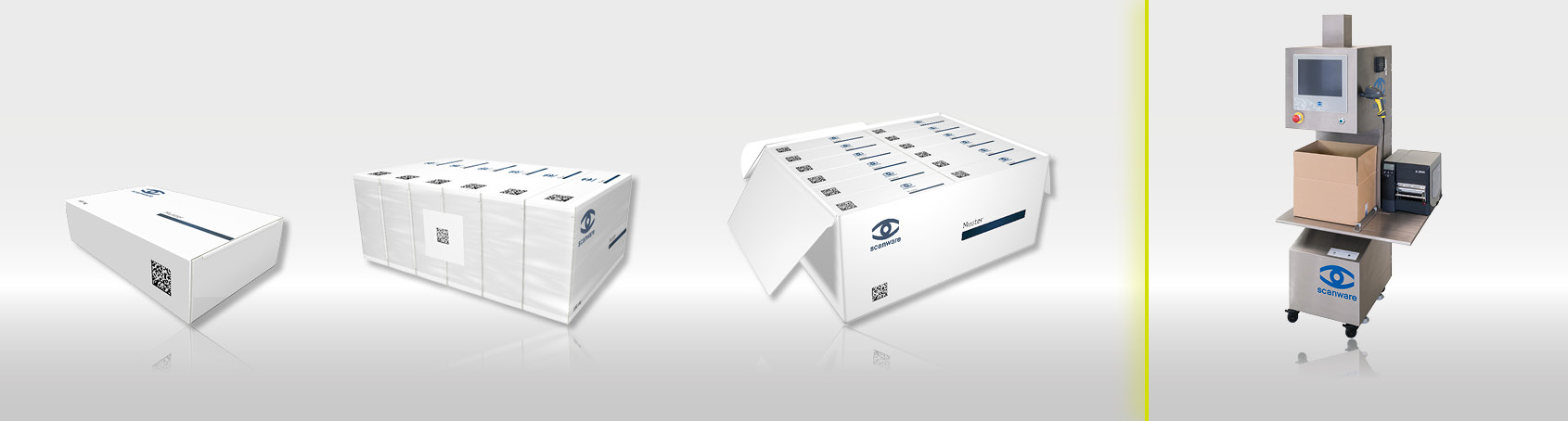

At the CAPA Case control station, printed images of folding boxes, bundles and shipping boxes are inspected and compared with database entries. This can be integrated as a stand-alone construction for case inspection on your line or in case packers.

The processing and aggregation of serialised data is implemented by scanware’s line manager IMPERA.

Inspection Criteria and Objects

Inspection objects:

  • Folding boxes
  • Bundles
  • Packaging boxes

Examination criteria:

  • Readability of 1D and 2D codes such as Code 128, DataMatrix and Crypto Code

Advantages of Case Inspection

  • High camera resolution for optimal results
  • Automatic adjustment of camera and light module when changing layers
  • Adjustable positioning edge to hold the shipping box in place
  • Implementation of all common codings
  • High-performance print inspection
  • High-quality standard components and thus efficient spare parts supply
  • Uniform user interface, comprehensible menu navigation and convenient data entry
  • Can be retrofitted if your requirements or regulations such as EU Directive 2011/62/EU change
  • Robust construction, mobile and ergonomic, and easy to clean
  • Excellent power transmission through the use of planetary gears and wear-free drives through brushless motors
  • Fully serialisable
  • Aggregation possible

Functionalities of the Case Inspection

Print inspection

The print is inspected by area scan cameras with integrated illumination. The method used for reading characters and codes was developed by scanware, is feature-based and optimised for high reading performance. Constant evaluation results independent of the number of character patterns taught in. All common codes such as GS1 and crypto-code are integrated.



Line connection and data exchange

Visualisation takes place on the scanware GUI. When integrated into an existing line, linking with upstream and downstream machines is of course possible.



Camera

Depending on the size of the composites to be inspected, cameras with up to 29 megapixel resolution and integrated SMD-W LED illumination are used. For shipping boxes with several layers of folding boxes, the height of the camera carrier is adjusted with a servo motor.



Illumination

The illumination used in CAPA Case is integrated in the camera housing as a reflected-light unit. It is adjustable in 16 brightness levels. The illumination set for a format is stored in the format data record and is therefore reproducible.



Construction

The table on which the bundles are placed is at a fixed working height.

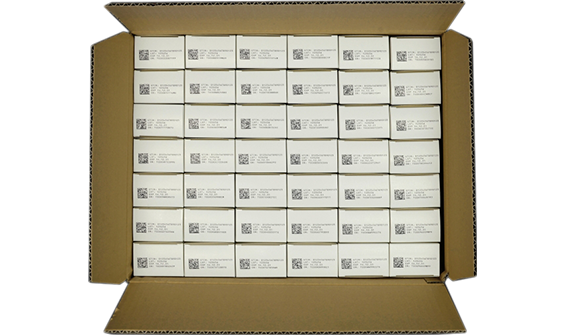

In order to be able to completely capture the printed images in the outer carton, the feed edge enables the carton to be optimally and centrally aligned under the camera.

The station can also be used as a flexible add-on solution in bundlers and case packers.
